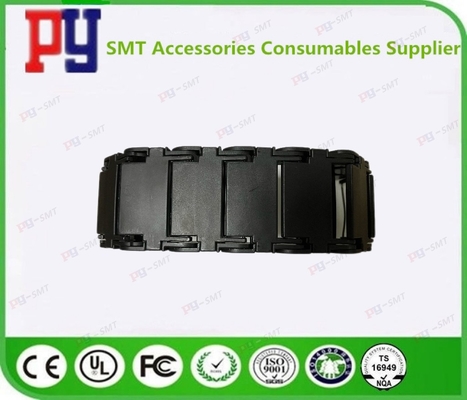

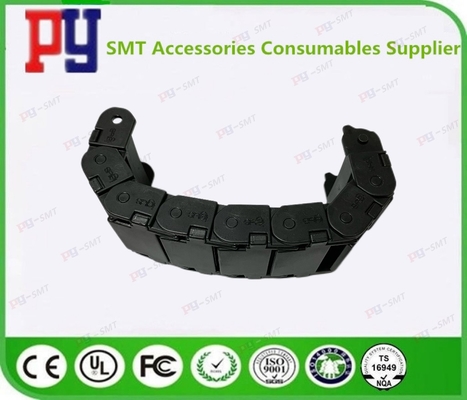

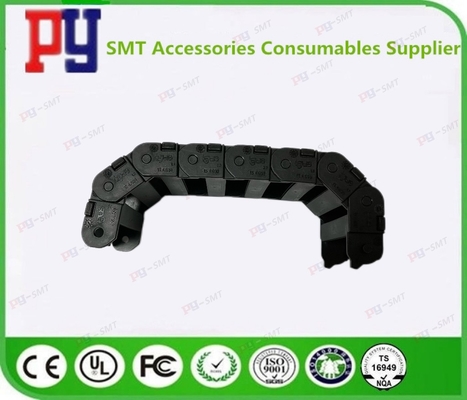

YAMAHA KV8-M71WK-00X Z Axis Tank Chain Towline Keel Track SMT Components For YV100XG YV100X Placement Machine
| Place of Origin | JAPAN |
|---|---|
| Brand Name | YAMAHA |
| Certification | CE,ISO |
| Model Number | KV8-M71WK-00X |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Standard Packaging |
| Delivery Time | 1-2days |
| Payment Terms | L/C, D/A, D/P |
| Supply Ability | Long-time |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | Original New | Speed | High-Speed |
|---|---|---|---|
| Quality | Excellent | Precision | High-precision |
| Part Number | KV8-M71WK-00X | Stock | With Stocks |
| Highlight | KV8-M71WK-00X Towline Keel Track,YV100XG Towline Keel Track,Smt Components Towline Keel Track |
||
Product Description
YAMAHA KV8-M71WK-00X Z Axis Tank Chain Towline Keel Track Smt Components YV100XG YV100X Placement Machine.
Others:
| 1 90440-01J090 CIRCLIP 2 | 1 KGB-M7102-00X PLATE HEAD 1 |
| 2 90933-01J001 BEARING 2 | 2 KV8-M7118-00X SPG. MAIN 1 |
| 3 90933-01J007 BEARING 4 | 3 KV8-M7125-00X FLANGE MOTOR 1 |
| 4 90933-01J300 BEARING 2 | 4 KV8-M7128-00X BALL SCREW Z 1 |
|
5 90990-01J065 BOLT HEX,SOCKET HEAD 2 |
4-1 KV8-M7128-A0X BALL SCREW Z ASSY. 1 W / No.46 2004.01 M3Y0102 |
| 6 90990-28J076 WASHER,PLAIN 1 | 5 KV8-M7129-01X HOLDER 1 BEARING 1 |
| 7 90K65-332P73 AC SERVO MOTOR 1 | 5-1 KGT-M7129-00X HOLDER 1 BEARING 1 2004.01 M410128 |
| 8 91312-03008 BOLT HEX,SOCKET HEAD 2 | 6 KV8-M7130-00X PLATE BEARING 1 |
| 9 91312-04006 BOLT HEX,SOCKET HEAD 12 | 7 KV8-M7136-00X GUIDE, Z AXIS 1 |
| 10 91312-04008 BOLT HEX,SOCKET HEAD 6 | 8 KGB-M7137-00X BELT R, MOTOR 1 |
| 11 91312-04010 BOLT HEX,SOCKET HEAD 6 | 9 KGB-M7139-00X PULLEY, MOTOR 1 |
| 12 91312-04012 BOLT HEX,SOCKET HEAD 9 | 10 KV8-M7145-00X DAMPER, Z SCREW 1 |
| 13 91312-04020 BOLT HEX,SOCKET HEAD 1 | 11 KV8-M71V6-00X WASHER 1 |
| 14 91312-05010 BOLT HEX,SOCKET HEAD 9 | 12 KV8-M71Y7-00X HOLDER, BLOCK Z 1 |
| 15 91312-05012 BOLT HEX,SOCKET HEAD 20 | 13 KV8-M71Y8-00X BRACKET, SPRING 1 |
| 16 KGA-M921T-00 BOLT 8 | 14 KJ2-M7151-01X DUMPER, Z GUIDE 1 |
| 17 KHW-M9215-00 PULLEY:P60-3GT 2 | 15 KG2-M7141-00X BEARING 1 7000ADF |
| 18 KHW-M921A-00 BRKT.,TENSIONER 1 | 16 KU4-M7120-00X COUPLING 1 |
| 19 KHW-M921B-00 STAY,ADJUST 1 | 17 KG2-M9173-00X LOCK NUT 1 |
| 20 KHW-M921C-00 SHAFT 1 1 | 18 90K55-4W073R AC SERVO MOTOR 1 |
| 21 KHW-M9222-00 POST 1 | 19 90K55-4W074Z AC SERVO MOTOR 1 |
| 22 KHW-M9223-00 PULLEY:P40-3GT 1 | 20 99480-04012 PIN PARALLEL 8 4X12 |
| 23 KHY-M9211-00 HOLDER,BRG. 2 | 21 KGA-M7210-01X CCD CAMERA 1 |
| 24 KHY-M9212-00 HOUSING 2 | 22 KV7-M7211-00X LENS 095 1 |
| 25 KHY-M921D-00 BELT 315-3GT-15 1 | 23 KV7-M7600-00X FIDUCIAL LIGHT ASSY. 1 |
| 26 KHY-M921G-01 BRKT.,DOG 1 | 24 KGA-M66F4-00X C.CABLE ASSY 1 1.7M |
| 27 KHY-M921M-01 WASHER 2 | 25 KGA-M66F2-00X C.CABLE ASSY 1 6M |
| 28 KHY-M921N-01 JOINT A 2 | 26 KV8-M7133-00X HOLDER CAMERA 1 |
| 29 KKE-M9218-00 GROMMET 1 | 26-1 KGB-M7133-00X HOLDER MULTI MACS 1 2002.07.11 M270025 |
| 30 KLW-M653D-00 SENSOR,PUA ORG ASSY 1 | 27 KV8-M7135-00X STAY, FID. LIGHT 1 |
| 31 KLW-M920E-00 PLATE,PU BASE 1 | 27-1 Delete 2002.07.11 M270025 |
| 32 KLW-M920H-00 STAY 1 | 28 KV8-M71W1-00X PLATE, I/O BOARD 1 |
| 33 KLW-M920L-00 PLATE 1(400x305) 2 | 29 KV8-M71W2-01X STAY 1, CABLE 1 |
| 34 KKE-M9B00-00 BALL SCREW PU 2 | 30 KGB-M71W3-00X STAY 2, CABLE 1 |
| 35 KLW-M9217-00 BALL BUSH 2 | 31 KV8-M71W5-00X STAY 2, I/O BOARD 1 |
| 36 KLW-M9218-00 SHAFT 2 | 32 KGB-M71W7-00X BRACKET TOP 1 |
| 37 KLW-M921F-00 GUIDE,PIN 1 | 33 KGB-M71W8-00X BRACKET R 1 |
| 38 KLW-M921G-00 GUIDE,PIN 1 | 34 KV8-M71W9-00X BRACKET L 1 |
| 39 KLW-M921H-02 PLATE,DOG 1 | 35 KV8-M71WC-00X BOLT SPACER 4 M4-50MM |
| 40 KLW-M921K-00 BRKT.,SENSOR 1 | 36 KV8-M71WF-00X BOLT SPACER 2 M4-75MM |
| 41 KLW-M921L-00 BELT 1188-3GT-15 1 | 37 KV8-M71WG-00X BOLT SPACER 2 M4-70MM |
| 42 KLW-M921S-00 BRKT.,MOTOR 1 | 38 90562-03J100 SPACER 4 M3X10 |
| 43 KLW-M9221-01 DAMPER 2 | 39 KGB-M71WJ-00X COVER, I/O BOARD 1 |
| 44 KV7-M9205-01 PULLEY 1:P22-3GT 1 | 40 KV8-M71WK-00X GUIDE CABLE 1 |
| 45 91312-05016 BOLT HEX,SOCKET HEAD 16 | 41 KGB-M71WL-00X COVER, HARNESS 1 |
| 46 91312-05020 BOLT HEX,SOCKET HEAD 1 | 42 KV8-M71WA-00X BRACKET, HNS 2 |
| 47 91312-06020 BOLT HEX,SOCKET HEAD 6 | 43 KGB-M71WR-00X BRACKET, I/O PLATE 1 |
| 48 92902-04200 WASHER,PLAIN 4 | 44 KGB-M71WS-00X BOLT SPACER 2 M4-30 |
| 49 92902-05200 WASHER,PLAIN 14 | 45 KGB-M71WT-00X BOLT SPACER 2 M4-43 |
| 50 95302-04600 NUT HEXAGON 1 | 46 KV8-M71YC-00X HOLDER, Z SPRING 1 |
| 51 95602-10100 NUT, U 8 | 47 99480-04010 PIN PARALLEL 8 4X10 2004.01.23 M410108 |
| 52 99009-10400 CIRCLIP 1 | 48 KGA-M60F6-00X C,CABLE ASSY 1 7,7 |
| 53 99009-12400 CIRCLIP 1 | 49 92A08-04305 SET SCREW 1 4X5 |
| 54 KLW-M9201-A0 DRIVE UNIT ASSY. 2 | |
| 55 KLW-M9203-E0 STAY ASSY. 1 | |
| 56 KLW-M9204-A0 TENTIONER ASSY. 1 | |
| 57 KLW-M9205-A0 PULLEY ASSY. 1 | |
| 58 KLW-M9206-A0 MOTOR ASSY. 1 | |
| 59 KLW-M9207-A0 SENSOR SUB ASSY. 1 | |
| 60 KKV-M920D-00 PUSH UP PIN UNIT |
