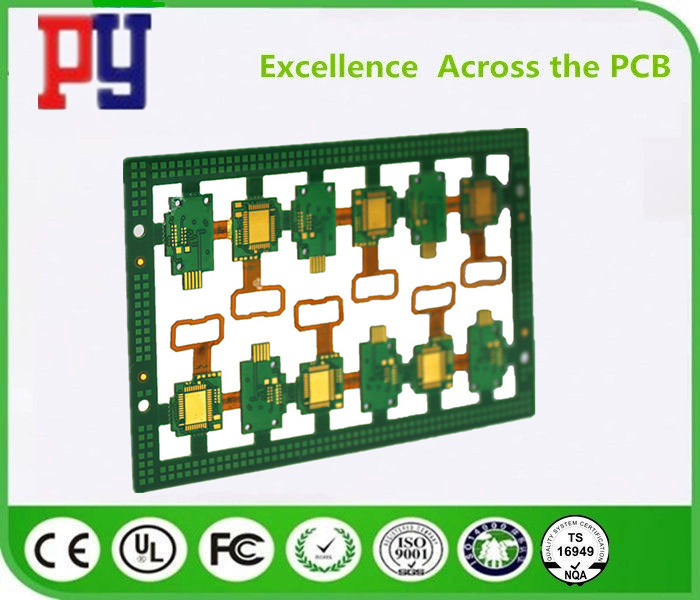

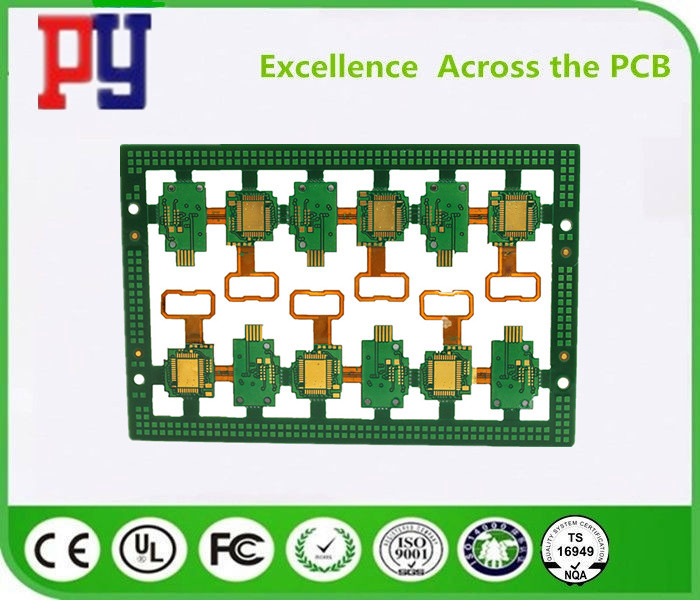

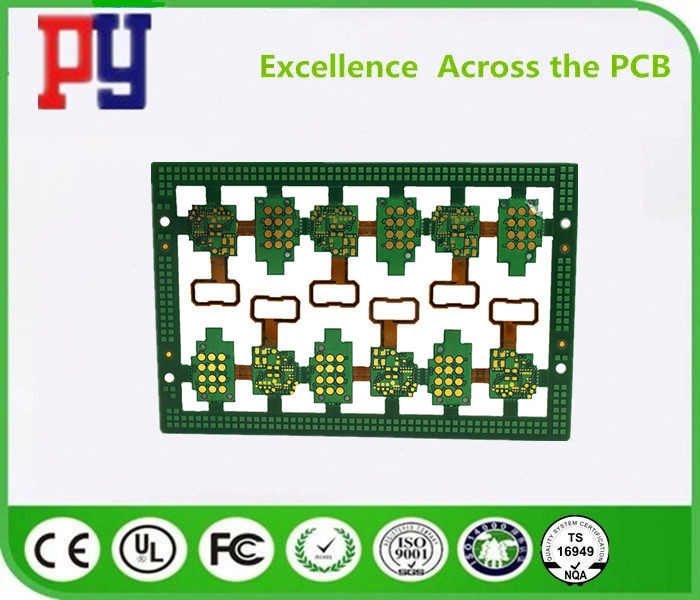

Medical Double Sided Tinned Rigid Flex Printed Circuit Boards 4 Layers ENIG Process

  • Medical Double Sided Tinned Rigid Flex Printed Circuit Boards 4 Layers ENIG Process
  • Medical Double Sided Tinned Rigid Flex Printed Circuit Boards 4 Layers ENIG Process
  • Medical Double Sided Tinned Rigid Flex Printed Circuit Boards 4 Layers ENIG Process
Place of Origin China
Brand Name PY
Certification ISO CE
Model Number Customizable
Minimum Order Quantity 1pcs
Price Negotiation
Packaging Details Wooden box
Delivery Time 3-10 days
Payment Terms L/C, T/T, PAYPAL
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PCB Universal Pcb Board / HDI Circuit Boards Place Of Origin China
NAME FR4 Circuit Board Outer Carton Box
Packaging Details Inner: Vacuum-packed Special Process ENIG
Thickness Range 1.0mm Quality 100% Test
Warranty 1 Year Warranty 1 Year
Highlight

rigid flex printed circuit boards

,

rigid flex circuit boards
Leave a Message
Product Description

Quick Detail:



1.Number of Layers: 4 layers

2.1.6mm thickness, 1oz copper

3.Multilayer rigid-flex pcb

4.Surface finish : NiAu

5.Green solder mask

6.White silkscreen





Specification:

Material FR4
Layer count 4 layers
Board thickness 1.6mm
Copper thickness 1oz
Minimum drill size 0.2mm
Minimum trace & gap 0.2mm
Surface finish NiAu
Applications Medical
Special Technology Flex: layer 4
  copper filled vias

Medical Double Sided Tinned Rigid Flex Printed Circuit Boards 4 Layers ENIG Process 0

Description


1. Professional manufacturer of PCB and PCB assembly specialized in single-sided PCB, double-sided PCB, multilayer PCB, PCB layout and design and PCB assembly


2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180


3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger


Application


Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries



Capability


　 High precision prototype PCB bulk production
Max Layers 1-28 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness＞2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz
Immersion Gold/
Gold Plated Thickness		 Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”		 　
Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%		 Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm		 ≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance ±10% ±10%
MIN Solder mask bridge 　0.08mm 　0.10mm
Plugging Vias capability 　0.25mm--0.60mm 　0.70mm--1.00mm








Advantages


1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 9 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
